Automated Solar Panel Recycling Lines: Where Automation Adds Value

What Automated Solar Panel Recycling Line Means in a Real Project

Search results often use automated solar panel recycling line as a broad label, while an operating plant is a chain of receiving, inspection, pre-processing, separation, dust control, material discharge and quality-control steps. A buyer therefore needs to define where the supplier's scope begins and ends. Feeding equipment, containers, conveyors, extraction ducting, electrical panels, spare parts and commissioning may be included, optional or supplied locally.

The feedstock definition is equally important. This article assumes sorted framed PV modules with defined dimensional ranges. The same line may behave differently when modules are frameless, double-glass, heavily weathered, wet, contaminated or already fragmented. YCSOLUTION uses photos, module data and representative samples to identify those differences before proposing a route; final performance should be confirmed under agreed test conditions.

For this topic, the controlling decision is which tasks have stable inputs and sufficient volume to justify automation. The evidence package should include module distribution, cycle-time study, exception rate, labour plan and control philosophy.

• automatic loading and orientation
• dimension and damage detection
• junction-box and frame handling
• line controls and traceability
• manual exception stations

Automated Solar Panel Recycling Line Process Flow and Engineering Controls

A robust process flow starts with triage. Modules that may be suitable for legitimate reuse should not automatically enter a destructive recycling stage. Modules selected for recycling are then grouped by structure and condition so that intact framed panels, glass-glass modules and loose damaged material can enter compatible handling steps.

For crystalline-silicon modules, common operations can include frame and junction-box removal, glass or laminate separation, controlled size reduction, screening, airflow or density separation and collection of metal-bearing fractions. Mechanical, thermal and chemical methods do not have identical outputs or environmental controls. The process should be selected around the required product specification, not around a generic claim that one route recovers everything.

Mass balance is the practical control tool. A commissioning test should record incoming mass, each separated product, dust or process residues and unaccounted loss. Samples should be taken using an agreed method and assessed by the intended downstream buyer where possible. This turns a demonstration into measurable acceptance criteria.

A common project failure is automating a process before measuring feedstock variability. The process review should address this risk before layout, price and delivery commitments are finalized.

• Document incoming module type and condition
• Define each saleable product and residual stream
• Record the operating hours used for the test
• Agree sampling and quality methods before acceptance
• Assign a compliant destination for every non-product fraction

Capacity, Utilities and Site Conditions

Hourly throughput is only one part of capacity. Annual output depends on secured tonnage, working days, shifts, changeover, planned maintenance, operator skill and the availability of downstream storage. If arrivals are seasonal or project-based, the receiving yard can become the constraint even when the equipment has spare instantaneous capacity.

Utility data should be requested as connected load and expected operating demand, with voltage and frequency matched to the destination. Dust extraction, compressed air, process water where applicable, ventilation, lifting equipment, fire controls and working clearances belong in the layout review. A mobile system reduces some permanent-building requirements, but it does not remove these interfaces.

• Annual tonnes and pieces supported by evidence
• Representative module dimensions and weight
• Operating calendar and planned utilisation
• Voltage, frequency, dust collection and compressed air
• Storage for incoming panels, products and residues

Commercial Evaluation Without Unsupported Promises

A quotation should separate equipment price from the full installed project cost. Freight, duties, foundations, buildings or containers, utilities, local labour, permits, commissioning materials and working capital can materially change the investment. Operating cost should likewise state the assumed labour, power, wear parts, maintenance and waste-disposal basis.

Revenue should be calculated from locally verified outlets and product specifications. Aluminium frame, copper cable, glass-rich material and silicon-bearing fractions do not have one universal price. Contamination, particle size, moisture, packaging and transport distance affect acceptance. YCSOLUTION can prepare a process configuration and budgetary scope, while the buyer should confirm local prices and regulatory obligations independently.

Payback, purity and recovery results must therefore be treated as project-specific outcomes. A useful supplier explains assumptions, exclusions and test methods instead of promising guaranteed economics from a brochure. This is especially important for new feedstocks and locations where downstream markets are not yet established.

For an apples-to-apples commercial comparison, track safe cycle time, exception rate, labour hours and recoverable uptime rather than relying on one headline percentage.

• Equipment and installation scope
• Freight, duties and local civil work
• Labour, energy, wear parts and planned maintenance
• Product quality and verified local offtake
• Permitting, residue treatment and reporting costs

How YCSOLUTION Develops a Project-Specific Proposal

YCSOLUTION begins with the waste stream rather than a fixed machine list. The engineering review considers module construction, damage, annual supply, desired capacity, target products, site conditions and destination-country requirements. Where the feedstock is uncertain, photos, videos and representative sample tests are more valuable than an early promise about output.

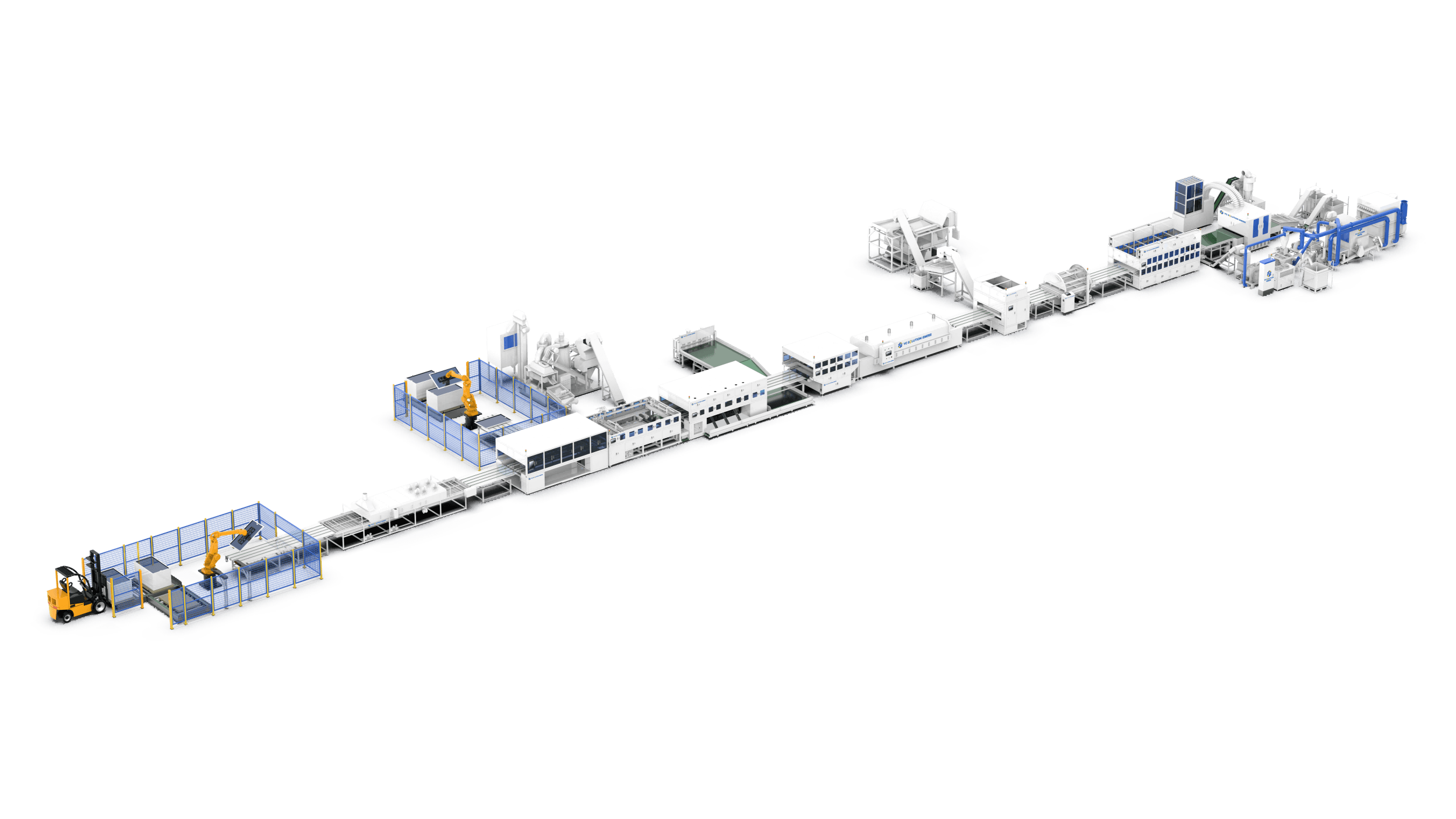

The recommended route may use the Purely Physical Precision Disassembly Route, another one of YCSOLUTION's four process routes, or a staged combination. The choice is documented as a process flow with major equipment, interfaces and expected material streams. Optional automation can then be assessed against labour availability and the consistency of the incoming modules.

Before contract, buyers should request a responsibility matrix covering design inputs, utilities, local work, factory acceptance, shipment, installation, commissioning, training, spares and after-sales communication. This makes technical and commercial comparison more reliable across suppliers.

• Feedstock questionnaire and image review
• Route selection and preliminary mass-flow discussion
• Equipment list and site-interface schedule
• Factory and site acceptance criteria
• Training, spares and service responsibilities

Independent Sources and Regulatory Note

PV module composition and end-of-life rules vary by technology and jurisdiction. The US EPA describes common crystalline-silicon recycling steps and notes that some discarded panels may require hazardous-waste determinations. IEA PVPS and NREL publications document evolving recycling technologies, policy and the need to consider reuse, collection and material quality.

These references provide planning context, not approval for a specific plant. Project owners should consult competent local environmental, safety, electrical and waste-management professionals before selecting a route or operating a facility.
